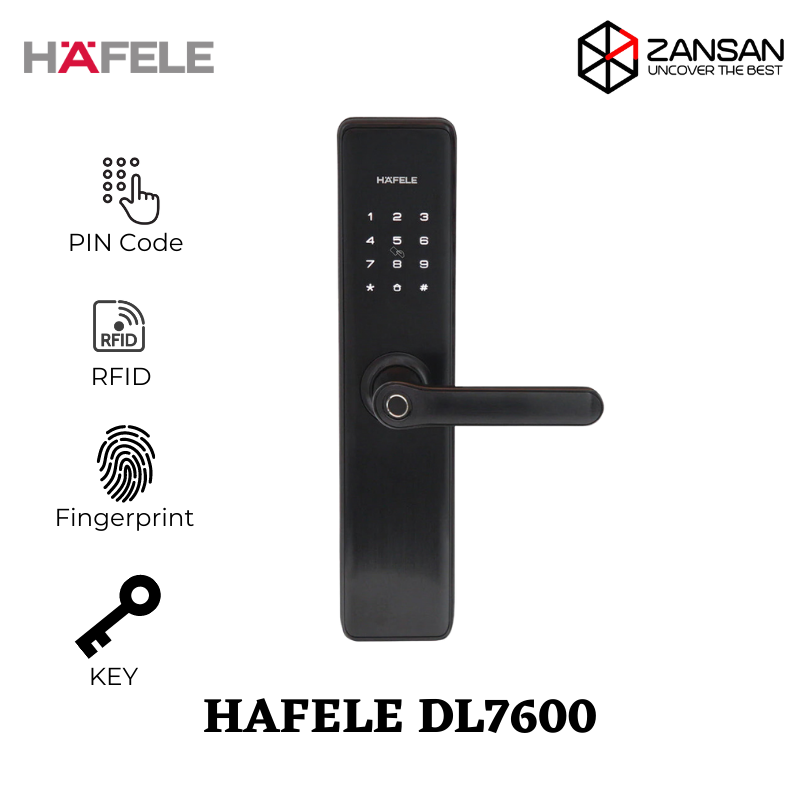

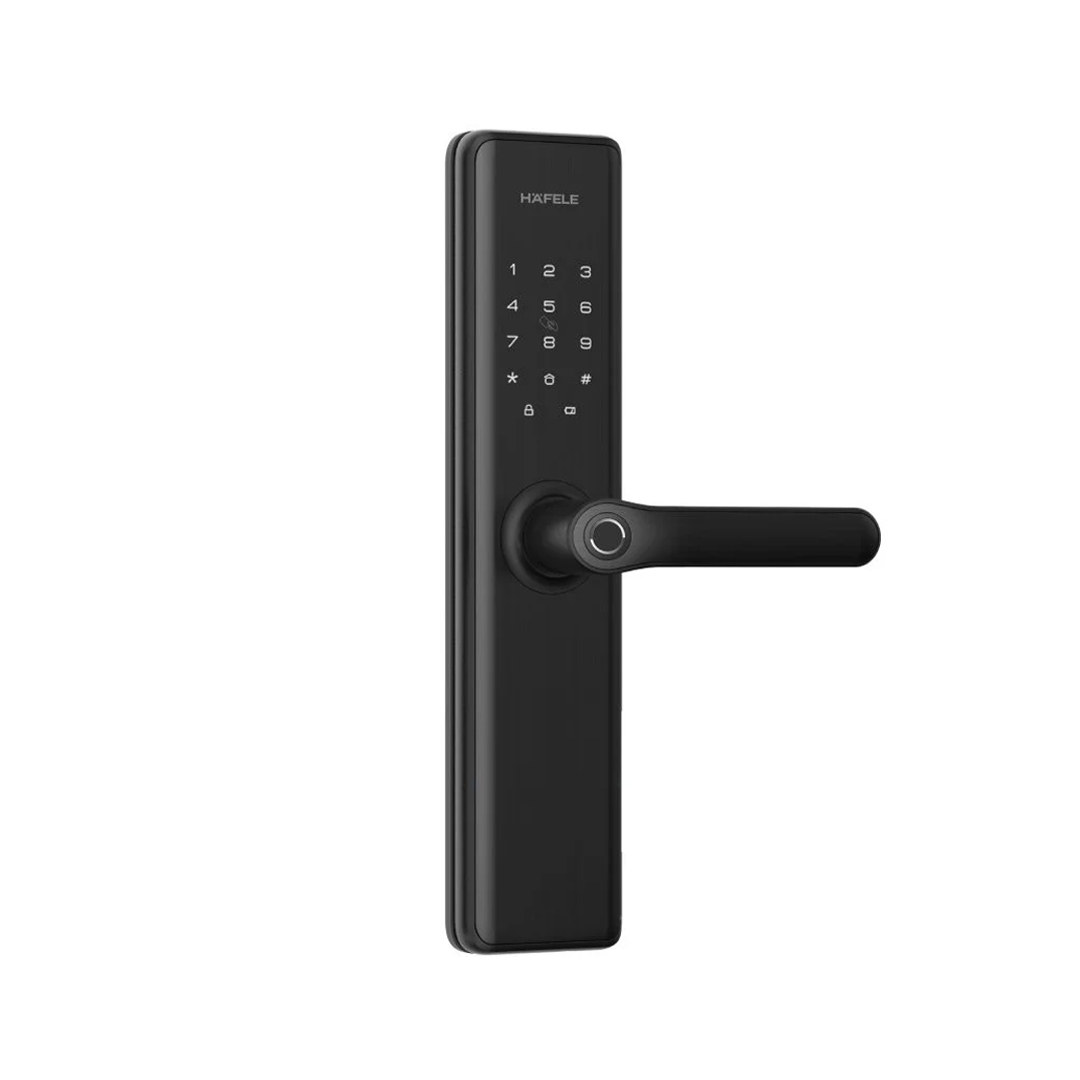

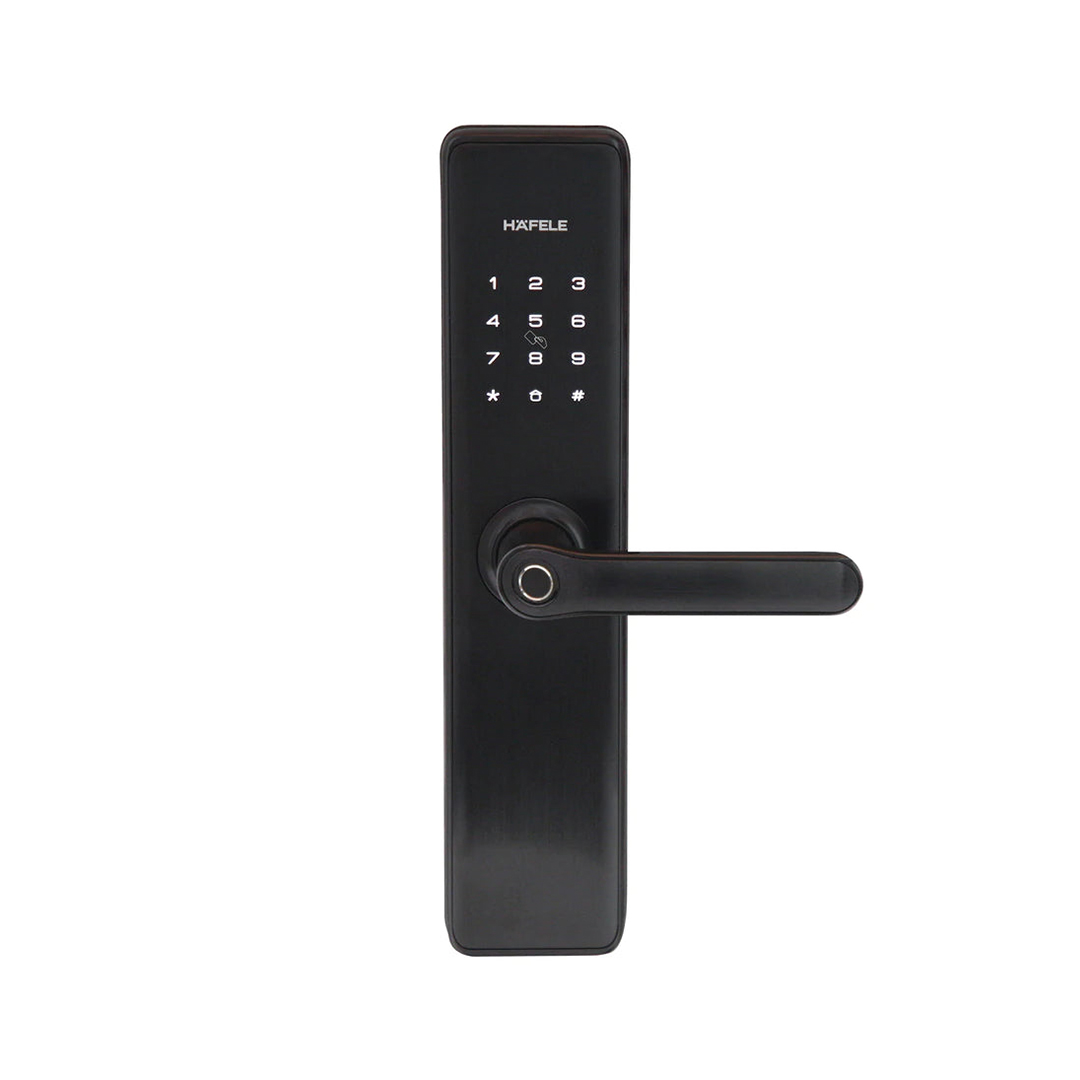

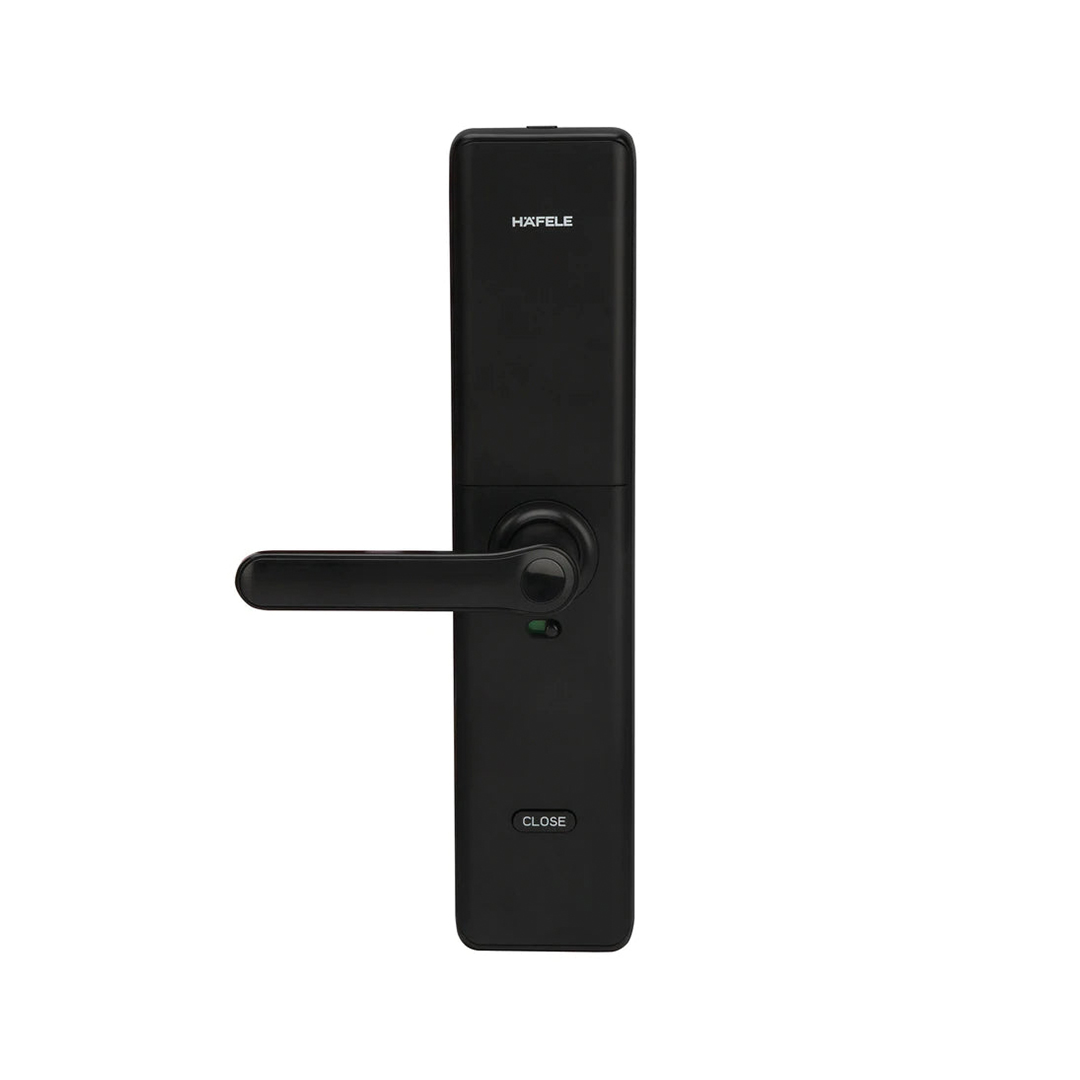

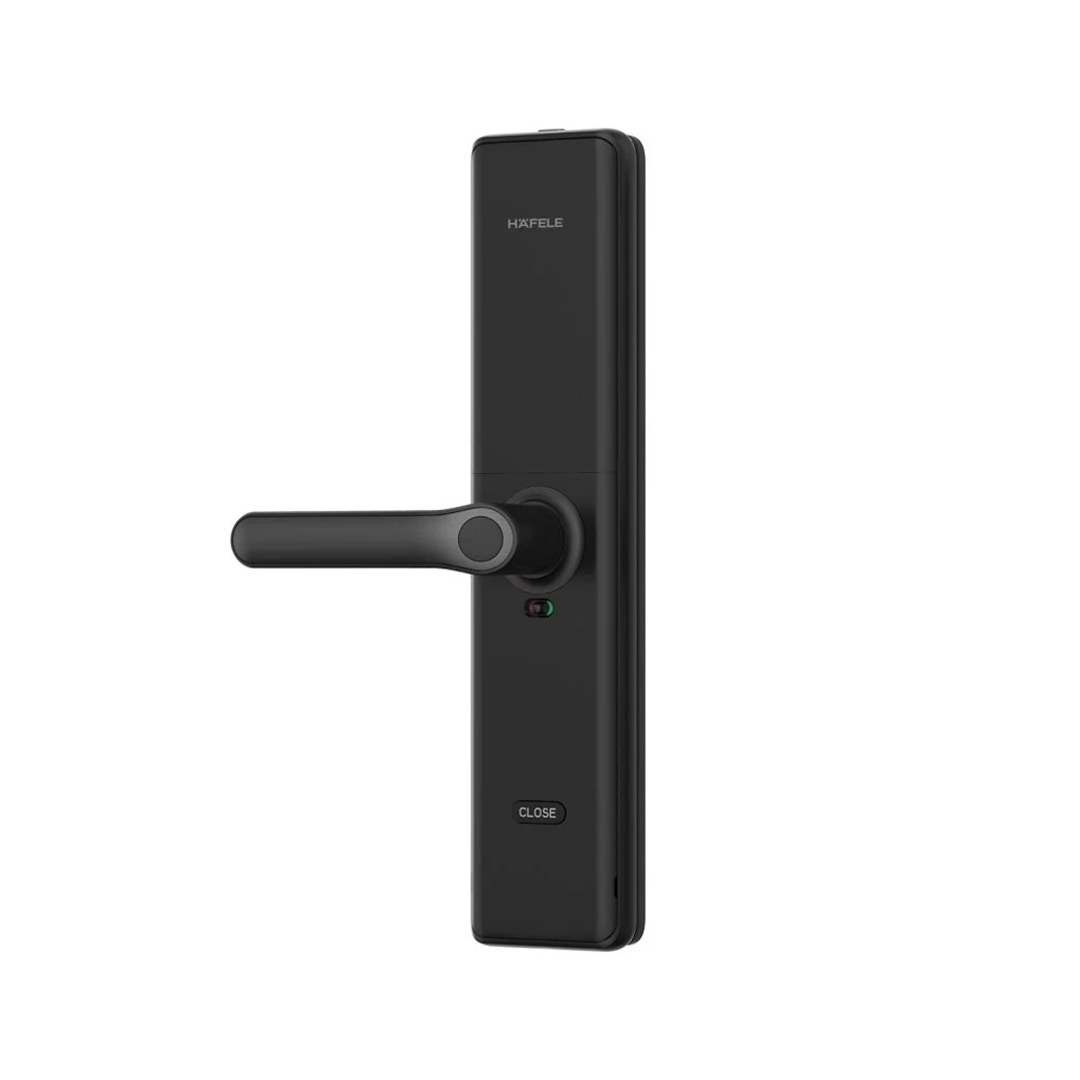

Hafele DL7600


Digital Door Lock

Free Shipping Nationwide | 2 years warranty

  • Away mode / Defense mode to increase security for your house in case no one home
  • Auto / Manual locking mode is changable
  • Managed by master password and user password
  • Häfele Smart Lock APP: Open on smartphone App via Bluetooth; Setting easier; Checking history
  • Double verification function by combine 2 in 3 access ways (Fingerprint / Password / Key card)
  • Private mode / Double locking mode can be activated from inside
  • A password can be entered with a random number to prevent stealing
  • Voice guide feature (English / Chinese)
  • Smart home intergration with Z-wave module (optional)
  • Low-battery warning by sound


Hafele DL7600

Access Mode

Fingerprint, Password, Key card, Mechanical key

User Friendly Interface


Intrusion Prevention


Out-body Dimension (W x H x D) mm

76mm(W) x 341mm(H) x 82mm(D)

In-body Dimension (W x H x D) mm

80mm(W) x 359mm(H) x 82mm(D)

Applicable Door Thickness (mm)


Door to Gate Allowance (mm)



4 to 8 pcs (1.5V, 'AA' Size, LR6 Alkaline) (DC 6V)

Battery Life

Approximately 1 Year (Average 10 times per day)

*Please check batteries periodically (at least 6 months) for Leakage
