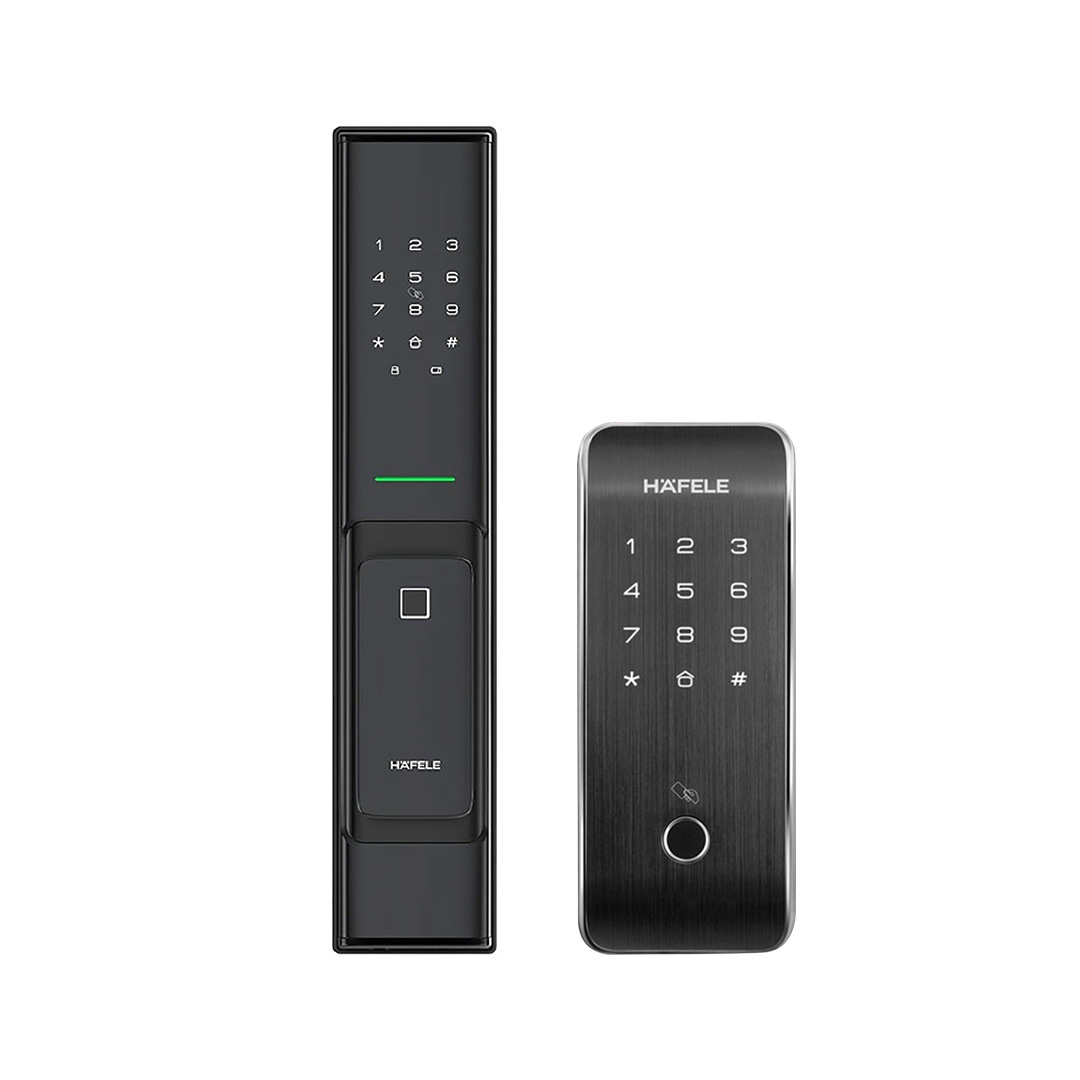

Hafele PP8100 & GL5600


Digital Door & Gate Lock

Free Shipping Nationwide | 2 years warranty

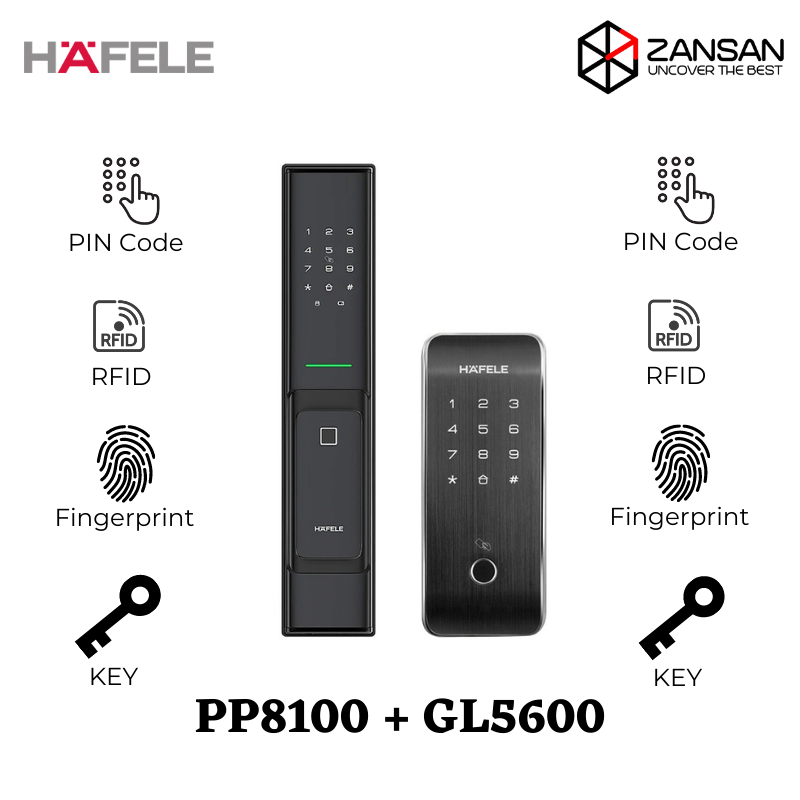

-allows you to open your door using fingerprint, pin code, rfid card & mechanical key.


  • Manage by master password and user password
  • Dual authentication function by combining 2 of 3 login methods (fingerprint / code / magnetic card).
  • Integrated privacy mode, can be activated from the inside of the lock.
  • Integrating the absence mode to increase security for the house
  • Can flexibly change between automatic and manual lock mode.
  • The lock will be deactivated for 5 minutes after entering the wrong code / card from 10 times in a row.
  • The function to prevent password copying using virtual password.
  • Can integrate with smart home systems using Z-wave.
  • Voice installation guide (English / Chinese)
  • Integrated resistance to electric shock
  • Integrated low battery warning sound
  • Can activate silent mode when needed
Hafele PP8100Hafele GL5600
Max User MemoryMax User Memory
1 User (PIN), 50 Cards, Up to 100 Fingerprint 1 User (PIN), 50 Cards, Up to 100 Fingerprint
Access ModeAccess Mode
Fingerprint, PIN Code, RFID card, Bluetooth, Mechanical Key

Fingerprint, Password and RFID card, Keys

User Friendly InterfaceUser Friendly Interface
Intrusion PreventionIntrusion Prevention
Out-body Dimension (W x H x D) mmOut-body Dimension (W x H x D) mm
78.5mm(W) x 394mm(H) x 76.5mm(D) 71mm(W) X 172mm(H) X 13mm(D)
In-body Dimension (W x H x D) mmIn-body Dimension (W x H x D) mm
78.5mm(W) x 394.4mm(H) x 69.5mm(D)

77mm(W) X 200mm(H) X 73mm(D)

Applicable Door Thickness (mm)Applicable Door Thickness (mm)
Door to Gate Allowance (mm)Door to Gate Allowance (mm)
4 to 8 pcs (1.5V, 'AA' Size, LR6 Alkaline) (DC 6V)4 pcs (1.5V, 'AA' Size, LR6 Alkaline) (DC 6V)
Battery Life
Approximately 4 to 8 month (Average 10 times per day)
*Please check batteries periodically (at least 6 months) for Leakage
