SIMPLE AND COMPACT BODY

Simple design, compact and thin. Widely suitable for installation on inside and outside doors.

Throw away the keys and instantly enjoy a smart and convenient life.

No need to remove the traditional door lock, easily create a private space.

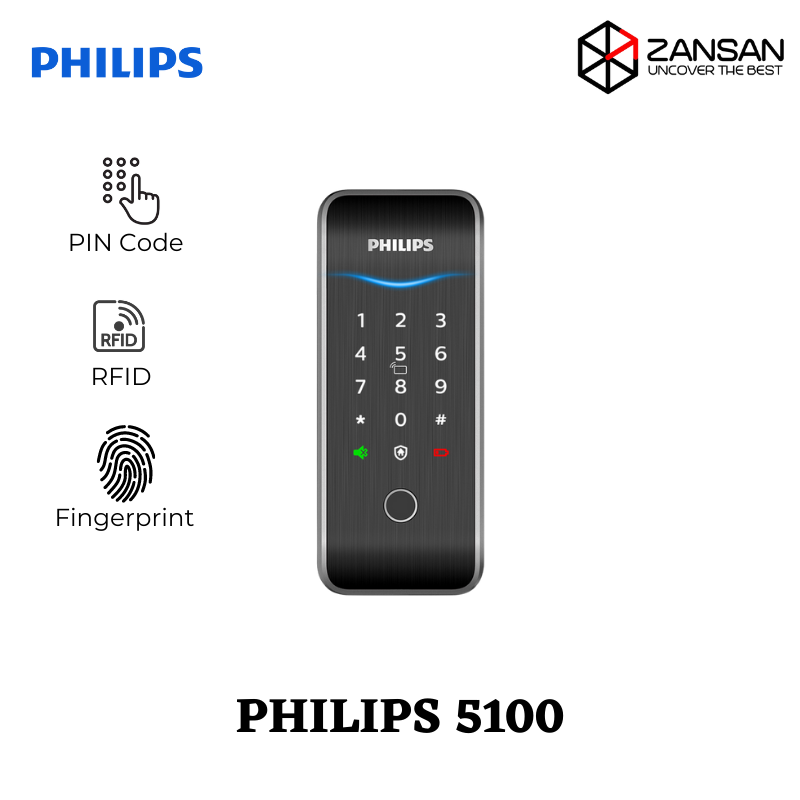

Model

Philips 5100

Max User Memory

1 Master PIN code, 10 User PIN code, 100 Cards,

100 Fingerprint, 1 One-time PIN code

Access Mode

Fingerprint, PIN code, RFID Card

User Friendly Interface

Yes

Intrusion Prevention

Yes

Out-body Dimension (W x H x D) mm

70mm(W) X 172mm(H) X 13mm(D)

In-body Dimension (W x H x D) mm

75.7mm(W) X 202mm(H) X 47.6mm(D)

Applicable Door Thickness (mm)

38-60 mm
60-90 mm
90-120 mm Other range*

Door to Gate Allowance (mm)

13~15mm

Power

Battery type : Alkaline battery

Power Supply : 4 AA batteries

Maximum battery capacity : 4

Working voltage : 4.5-6V

Emergency power : 5V power back

Battery Life

Approximately 6 to 8 month (Average 10 times per day)

*Please check batteries periodically (at least 6 months) for Leakage
