Zeus S-320G


Digital Gate Lock

Free Shipping and Free Installation in Singapore | 3 Years Warranty

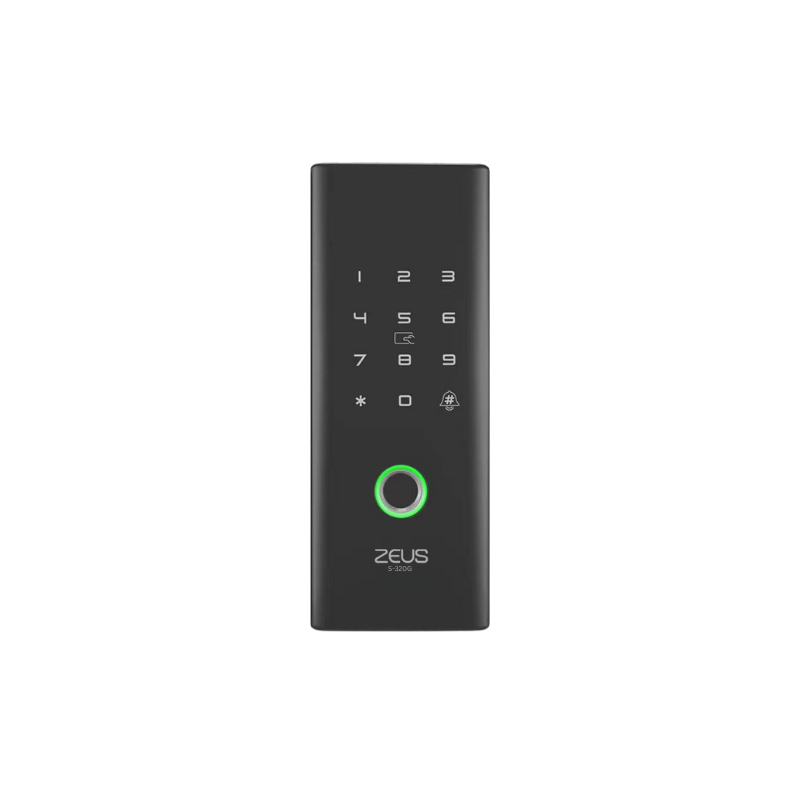

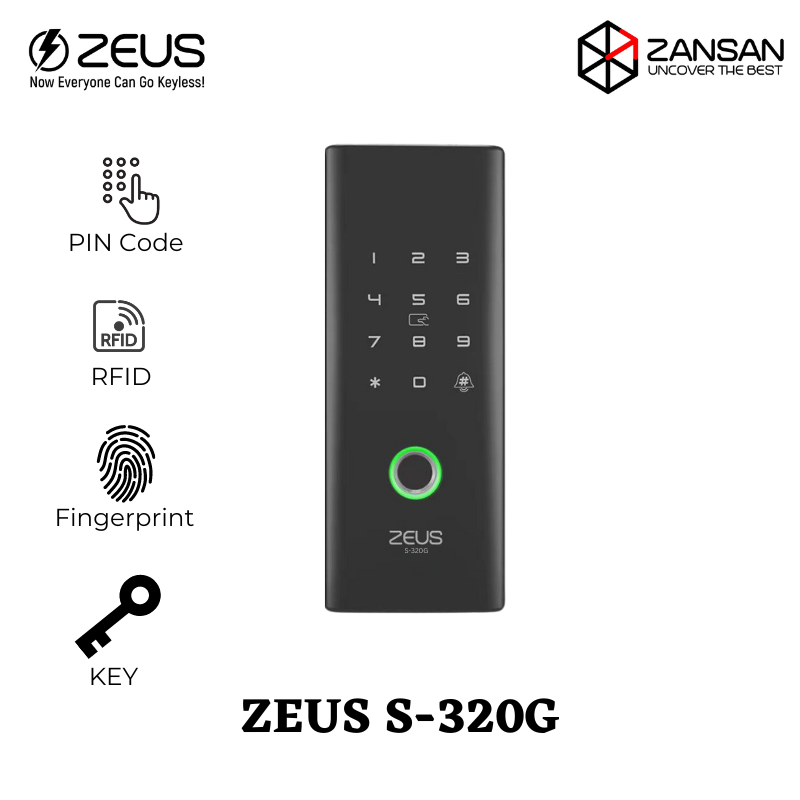

Zeus S-320G Digital Gate Lock

With simple and elegant design, the whole gate lock body is made of zinc alloy material.

The double hock bolt design and semiconductor fingerprint head makes the lock more safer. The dual motor protection mode of cluth + program makes the motor non-stuck.

(Can top up $30 for a gate lock’s remote control device)


  • Stylish appearance:

The wide full-screen design, seamless touch screen display with personality, simplicity and three different colors make it refreshing.


  • Metal material:

The front and back panel of the lock are made of zinc alloy, and the integrated panel is more durable.


  • Fingerprint recognition:

The semiconductor fingerprint head recognition is not only sensitive and fast, but also can effectively prevent fingerprint copying, and with sensitive identification of wet and dry hands, elders and children.


  • Double hook bolt:

Unique design of double hook bolt can bear large resistance, and can be free of insert assembly.


  • Dual protection motor

With program + clutch design, the dual protection motor is with automatic control device, which effectively prevent motor from damage. And it makes the motor precise and powerful and work without stucking.


Zeus E-300G (11)


Zeus S-320G

Max User Memory

100 User (PIN), 100 RFID Tags, Up to 100 Fingerprints, 2 Keys

Access Mode

PIN, RFID Tag, Dual Fingerprint (Out body body & In body), Key

User Friendly Interface


Intrusion Prevention


Out-body Dimension (W x H x D) mm

70mm(W) X 171mm(H) X 35mm(D)

In-body Dimension (W x H x D) mm

43mm(W) X 171mm(H) X 20mm(D)

Applicable Door Thickness (mm)

40 ~ 50mm

Door to Gate Allowance (mm)

65 ~ 70mm


4 pcs (1.5V, 'AA' Size, LR6 Alkaline) (DC 6V)

Battery Life

Approximately 4 to 8 month (Average 10 times per day)

*Please check batteries periodically (at least 6 months) for Leakage
